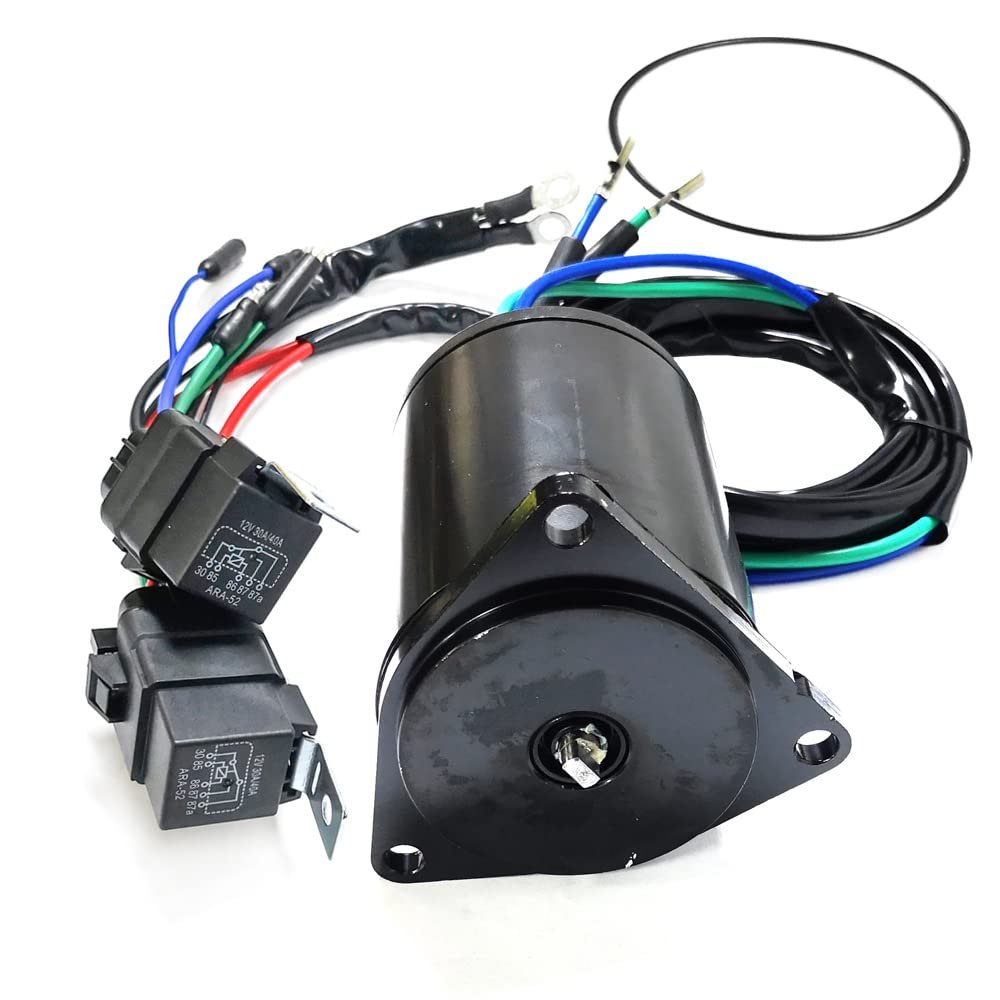

OVERSEE 688-43880-10, 688-43880-11 Trim Motor for Yamaha Outboard Motor 2T 4T 50-200HP 6E5-43880-01, 6E5-43880-02 Lester 6267

Description

• For YAMAHA Marine TILT & TRIM All Models 50-225 H.P. 1985-1986.
• 12 Volt motor with 3-wire connection (Ring Terminal Ends). 68.3mm MTG Flange diameter arm shaft. Flat blade 4mm thick.
• Ref. code For Yamaha: 688-43880-10-00 / 688-43880-11-00 / 6E5-43880-01-00 / 6E5-43880-02-00
• Also can suit for API MARINE PT612NM, ARCO MARINE 6267, ARROWHEAD TRM0053, EMP UnitS 4-6821, J & N 430-22082, LESTER 10835, QUICKSILVER 8M6007568, WAI 10835N

This is a brand new power trim tilt motor for Yamaha Outboard Motor 12 Volt motor with 3-wire connection (Ring Terminal Ends). 68.3mm MTG Flange diameter arm shaft. Flat blade 4mm thick. Fits the following: For YAMAHA Marine TILT & TRIM All Models 50-225 H.P. 1985-1986. Please contact us if you have any doubt about the product. Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 3.598in / 91.4mm, Shaft OD: 0.315in / 8mm, Length: 4.906in / 124.6mm, Brief: Yamaha 50-220HP Outboard Motors 1984-95 Replaces Numbers: API MARINE: PT612NM, ARCO MARINE: 6267, ARROWHEAD: TRM0053, EMP UnitS: 4-6821, J & N: 430-22082, LESTER: 10835, QUICKSILVER: 8M6007568, WAI: 10835N, For Yamaha: 688-43880-10-00, 688-43880-11-00, 6E5-43880-01-00, 6E5-43880-02-00 Compatible With/Replacement For: YAMAHA 115ETL 1984-1984, 115ETL 1985-1986, 115ETX 1984-1984, 115ETX 1985-1986, 150ETL 1985-1986, 150ETX 1985-1986, 175ETL 1985-1986, 175ETX 1985-1986, 200ETL 1984-1984, 200ETL 1985-1986, 200ETX 1984-1984, 200ETX 1985-1986, 50ETML 1990-1990, 50TLH 1991-1991, 70ETL 1984-1984, 70ETL 1985-1986, 90ETL 1984-1984, 90ETL 1985-1986, 90ETLJD 1986-1986, 90ETX 1984-1984, L150ETX 1986-1986, L200ETX 1986-1986, P50TLR 1991-1991, PRO50L 1987-1990
