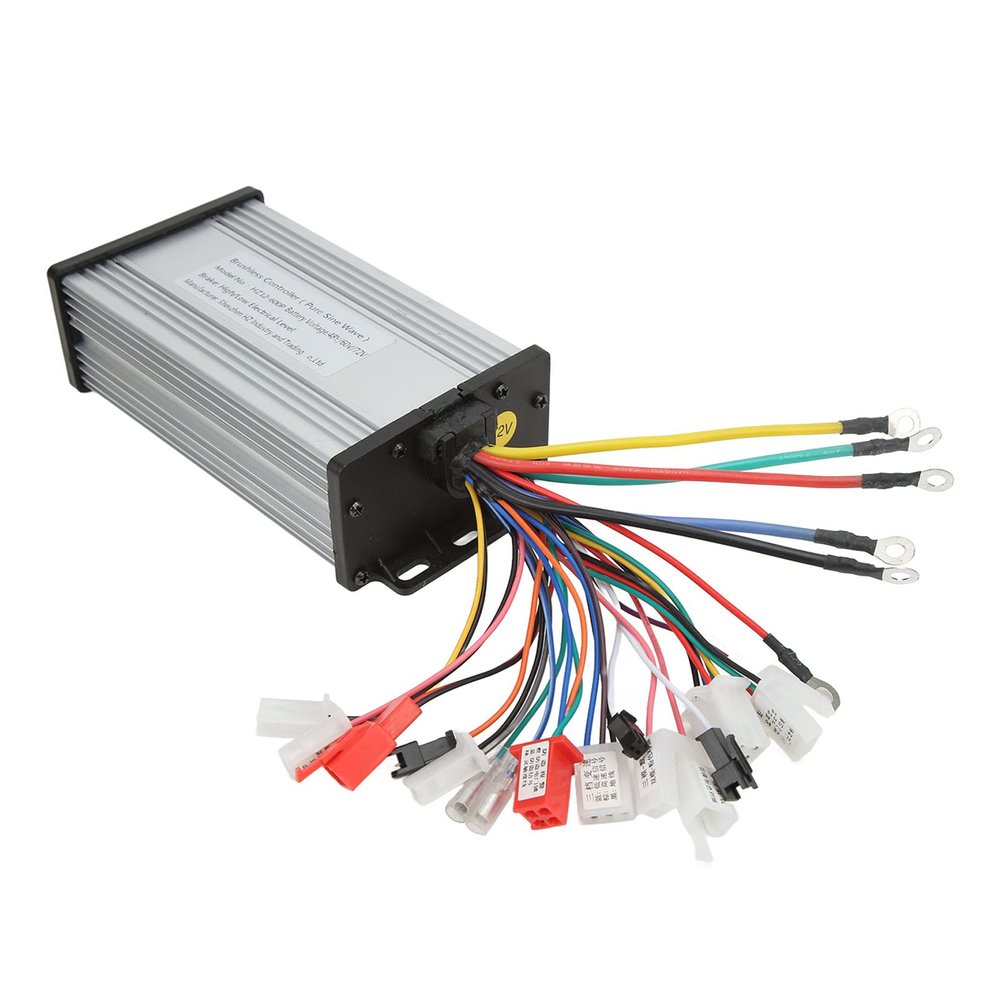

Keenso Electric Scooter Controller, Brushless Motor Controller, Adjustable Speed 600W, 48V-72V for Electric Scooters, E-Bikes, E-Trikes in Various Weather Conditions

Description

• Good Performance: The brushless motor controller provides stable speed and sensitive control of braking and directional changes.
• Selected Material: The controller housing is made of aluminum alloy, with a recessed design for good heat dissipation characteristics to the internal circuit, from thermal overload.
• Low Noise: Quiet and low noise design, which is and worry , no noise pollution, safer. Don't worry about disturbing others when you use it.
• : All wires are made of high temperature and flame retardant wires, which are safer. The reinforced screws are , and each screw is fixed with thermal conductive glue, and the effect is better.
• Scope of Application: The sine brushless controller is applied to electric vehicles, electric bike, electric tricycles.

Feature:
1. Selected Material: The controller housing is made of aluminum alloy, with a recessed design for good heat dissipation characteristics to the internal circuit, from thermal overload.
2. Good Performance: The brushless motor controller provides stable speed and sensitive control of braking and directional changes.
3. Scope of Application: The sine brushless controller is applied to electric vehicles, electric bike, electric tricycles.
4. : All wires are made of high temperature and flame retardant wires, which are safer. The reinforced screws are , and each screw is fixed with thermal conductive glue, and the effect is better.
5. Low Noise: Quiet and low noise design, which is and worry , no noise pollution, safer. Don't worry about disturbing others when you use it.

Specification:
Item Type:ElectricBrushlessController
Product Material: Aluminum Alloy
Gross Weight: 528g / 18.62oz
Voltage: 48V/60V/72V
Power: 600W
Current Limit: 301A
Phase Angle: 60/120
Turning Voltage: 1.1-4.2V
Undervoltage: Automatic
1pc electric door lock
2pcs positive and negative poles of the power supply
3pcs motor phase wires
1pc anti theft alarm wire (red: positive, black: ground)
1pc anti theft alarm line anti theft electric door lock, blue: anti theft , green: sensitivity line)
2pcs Three mode default line
1pc high battery brake (: high electric brake )
1pc low battery wire brake (yellow: level brake, black: ground wire)
1pc button three speed cable (: button , black: ground)
1pc reversing (gray: reversing , black: 1 ground wire)
1pc motor hall (red: 5V positive, black: ground, yellow: green and blue hall)
1pc gear (blue: low speed , brown: high speed , black: ground wire)
White line blackhead: 2pcs learning
